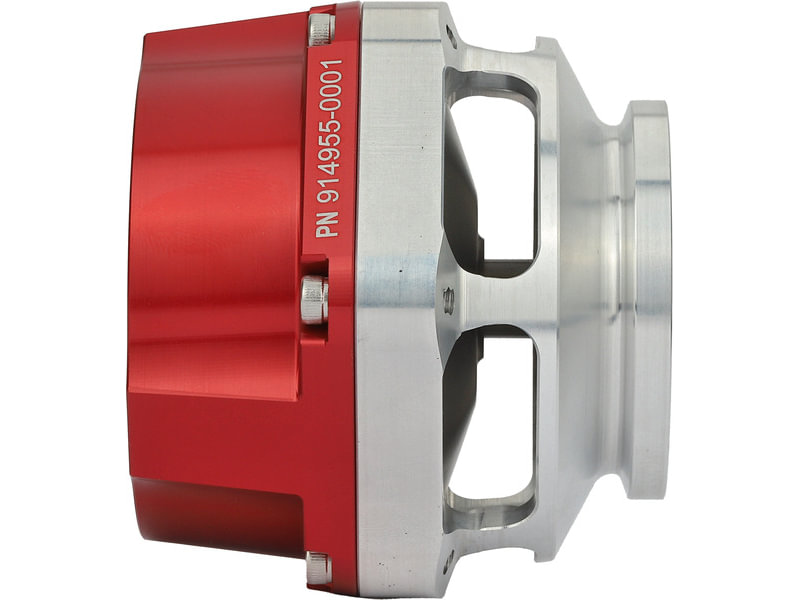

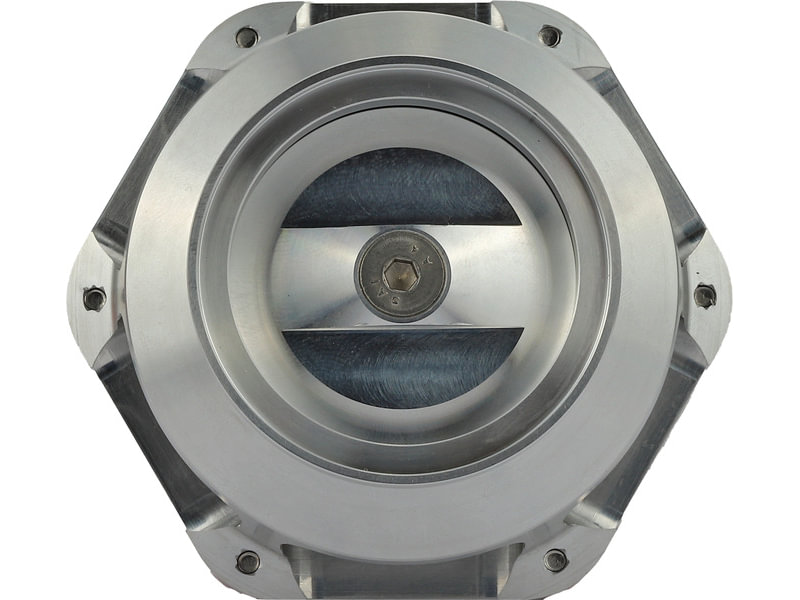

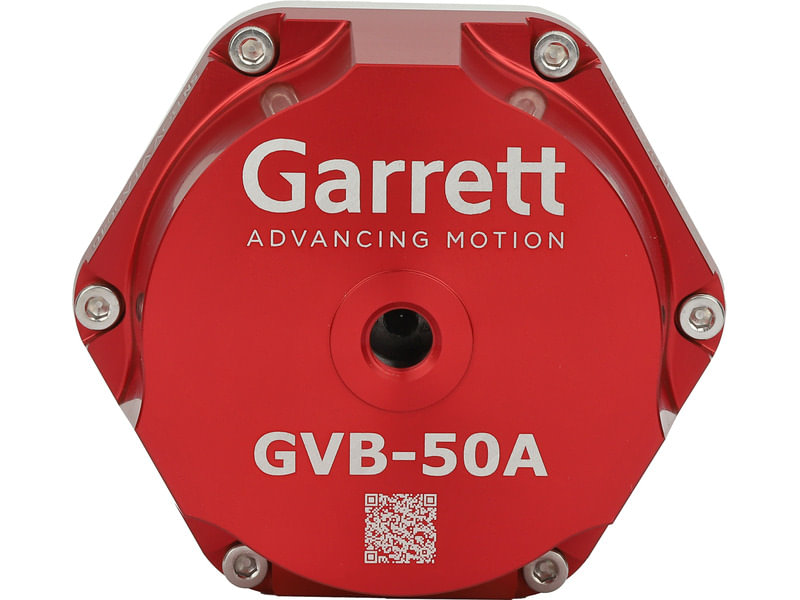

GARRETT 914956-0001 Turbocharger Blow-Off Valve (BOV)

Manufacturer

GARRETT

Product Description

914956-0001 Turbocharger Blow-Off Valve (BOV)

Features & Benefits

• CFD tested for maximum flow and thermal efficiency.
• Replaceable components to increase service life.
• Robust design for easy diaphragm replacement.
• 6061 Anodized aluminum actuator cover and fully-machined billet housing, Available in RED, BLUE, BLACK, SILVER.
• Maximum flow 350 CFM
• .21kg/s for GVB-50R.
• Four outlet adapters for the recirculating valve. Adapters sold separately.
• Base pressure 0.7 Bar
• 10 PSI (blue and white spring installed).
• Configurable springs settings include: 3
• 4
• 6
• 7
• 9
• 10
• 12
• 13 PSI.
• Wrought Aluminum Alloy Weld Flange.
• 17/7 PH Stainless Steel Springs.
• Plated stem and bushing for lowered friction and wear resistance.
• High temp nomex reinforced diaphragm.
• Stainless steel fittings and fasteners.
• BOV flange dimensions interchangeable with Tial Q and QR.
• BOV flange dimensions interchangeable with Tial Q and QR

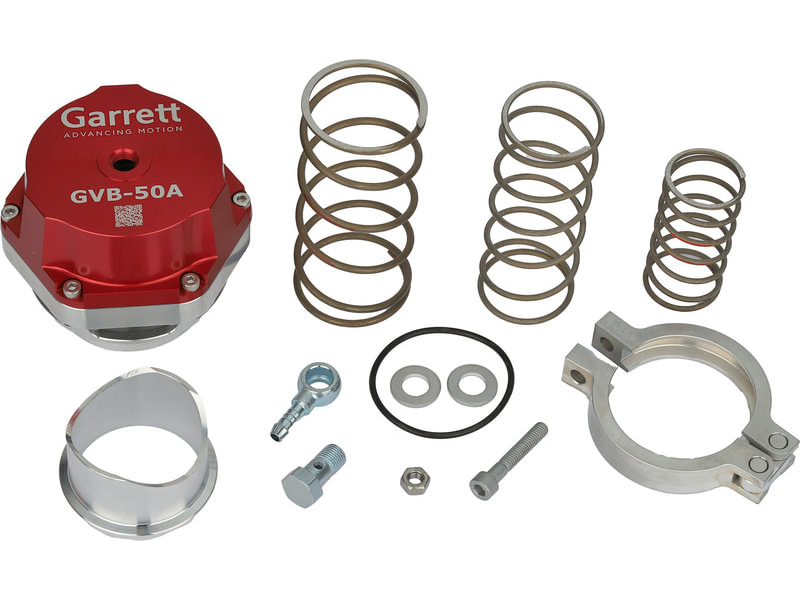

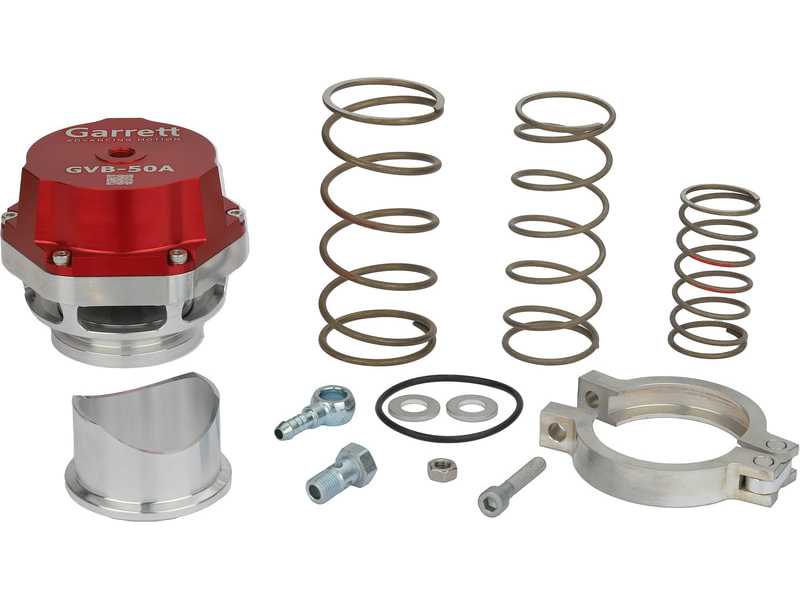

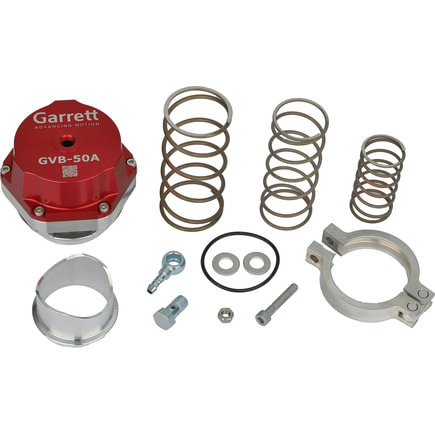

• Included in the box:.
• 1x GVB-50 Blow Off-Valve.
• 8x Springs.
• 1x V-Band Assembly (nut, bolt, V-band).
• 1x Inlet Flange with O-ring and Hardware.

1x GVB-50 Blow Off-Valve | 8x Springs | 1x V-Band Assembly (nut, bolt, V-band) | 1x Inlet Flange with O-ring and Hardware
